Pure Tungsten
-
1. Grade: W1
2. Purity :W1 > =99.95%
3. Characteristic:
Melting Point: 3410 Degrees Celsius
Boiling Point: 5927 Degrees Celsius
Density: 19.3g/m3
High quality, workability
4. Product Feature:
High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion. -

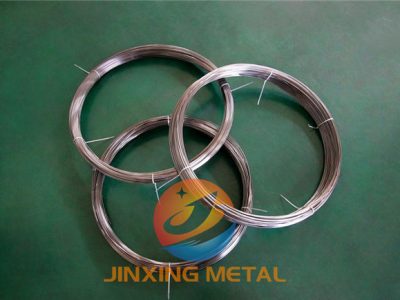

We supply tungsten rhenium wire doped with rhenium, which has much better ductility and stability than pure tungsten in high temperature.
-
1) Designation: W1 (W 99.95% min)
2) Application: the hot and cold rolled rolled -
1. Grade: W1
2. Purity :W1 > =99.95%
3. Characteristic:
Melting Point: 3410 Degrees Celsius
Boiling Point: 5927 Degrees Celsius
Density: 19.3g/m3
High quality, workability
4. Product Feature:
High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion. -

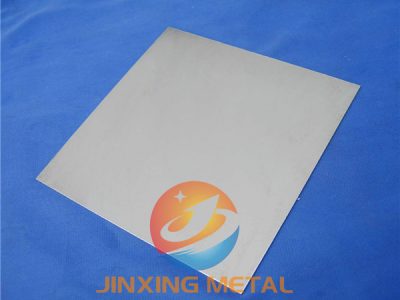

Material£º Tungsten
Size£ºThinkness( <20mm) xWideth (<300mm) x Longth(500mm) Condition£ºground Application£ºPVD coating industry¡¢x-ray tube and so on. -

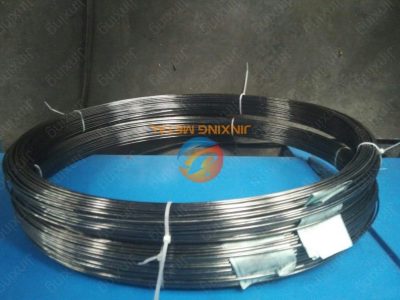

Tungsten Wire There is a kind of tungsten wire named Doped Tungsten Wire, also known as 218 tungsten wire or non-sag tungsten wire. It is the forging of tungsten bar, and made of fine wire drawing, mainly used in incandescent, halogen and other electric light sources.
-

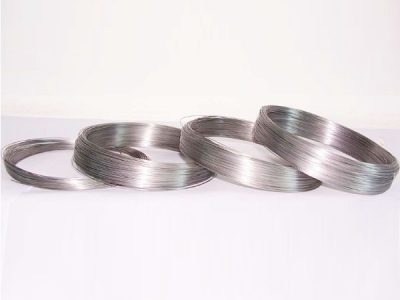

Tungsten wire
1, Diameter: 0.01mm~5.00mm
2, Grade: W1, W2, WAL1, WAL2, WAL3
3, Density: Purity 99.92%, 99.98% can also be achieved if special demanded.
4, Quality standard: GB/T 4181-1997(tungsten wire)ASTM B760-86
5, Specific electrical: 0.055 Ohm x mm2/m resistance at 20 °C.
6, Modulus of elasticity: 410 kN/mm2, at 20 °C. -
Products Feature:
1. Excellent Conductivity
2. Resistence of high temperature.
3. Abrasion and Erosion.
4. Suitable for making heating wires.
5. Twisted wires for coating films under vacuum and for tungsten wires in electrical light sources usage.
