Grade 5 Bright Smooth Titanium Alloy Foils Ti6Al4V ASTM B265
Grade 5 Bright Smooth Titanium Alloy Foils have a series of advantages, such as good mechanical and mechanical property, high specific strength, low density, non-magnetic, high temperature resistance, low coefficient of thermal expansion, good corrosion resistance, low temperature without brittleness. Titanium alloy, represented by ti6al4v, is an alloy of other elements based on titanium.
Advantage:
♦Low density, high strength
♦Good heat resistance
excellent corrosion resistance
♦High melting point, good corrosion resistance, excellent superconductivity and other unique characteristics
Chemical Composition of Grade 5 Bright Smooth Titanium Alloy Foils
|
Grade |
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
|
Gr1 |
0.03 |
0.08 |
0.015 |
0.2 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr2 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr3 |
0.05 |
0.08 |
0.015 |
0.3 |
0.35 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr5 |
0.05 |
0.08 |
0.015 |
0.4 |
0.2 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
|
Gr7 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
|
Gr9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
|
Gr12 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Tensile Requirements of Titanium Alloy Foils
|
Grade |
Tensile Strength (min) |
Yield strength 0.2%Offset |
Elongation in 2in.Or 50mm % (min) |
||
|
Min |
|||||
|
KSI |
MPA |
KSI |
MPA |
||
|
Gr1 |
35 |
240 |
20 |
138 |
20 |
|
Gr2 |
50 |
345 |
40 |
275 |
18 |
|
Gr3 |
65 |
450 |
55 |
380 |
18 |
|
Gr5 |
130 |
895 |
120 |
828 |
10 |
|
Gr7 |
50 |
345 |
40 |
275 |
18 |
|
Gr12 |
70 |
483 |
50 |
345 |
18 |

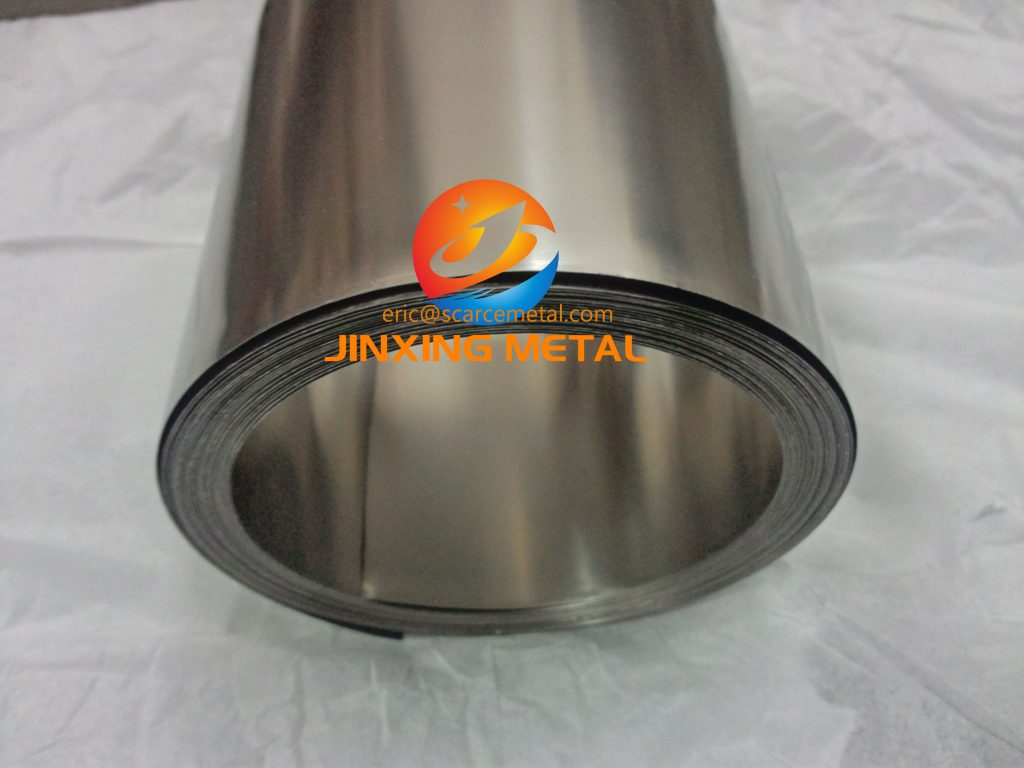

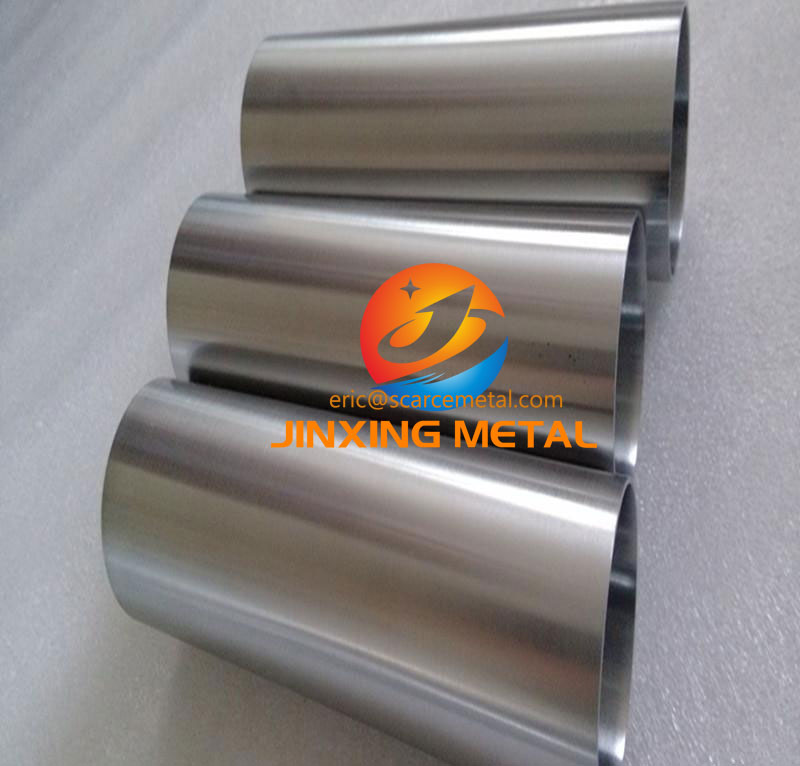

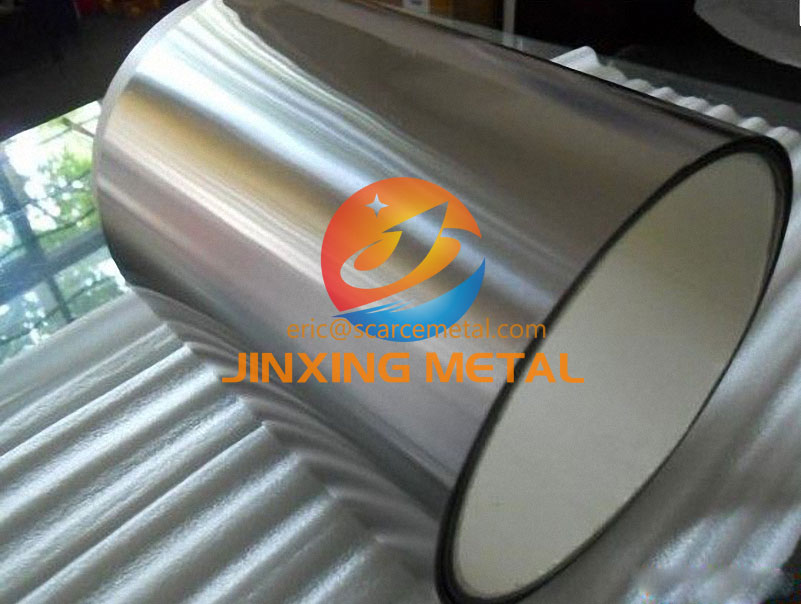

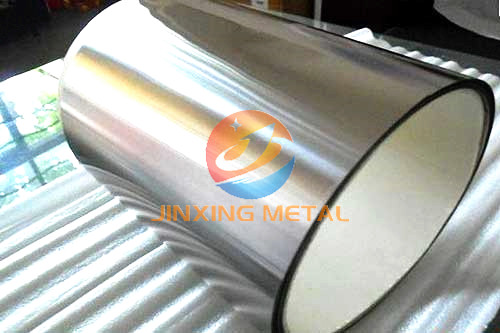

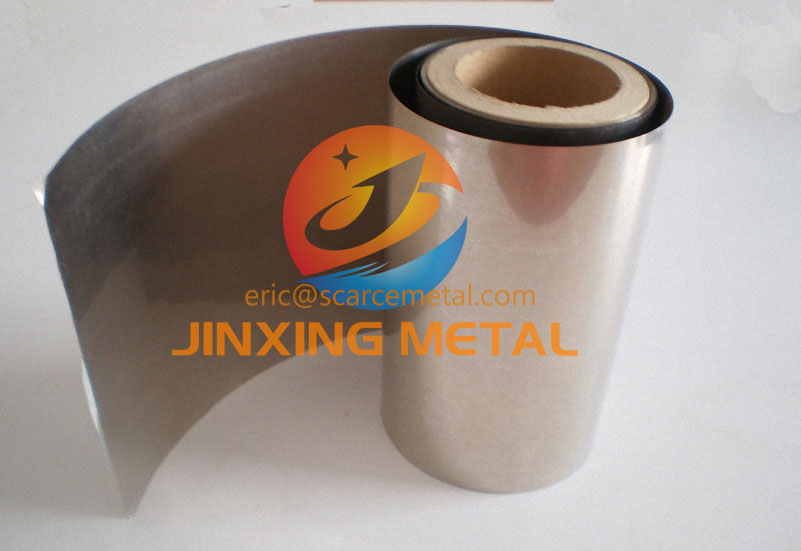

Grade 5 Bright Smooth Titanium Alloy Foils Picture:
Application of Titanium Alloy Foils
Titanium alloy foils were first known as important structural materials for navigation, and then extended to shipbuilding, chemical industry and other fields, and got rapid development.
