Product Description

We have more than 10 years experience to produce the copper tungsten alloy. we use the advanced vacuum infiltration process and all of the product fulfill the standard of GB/T8320-2003 and ASTM B702. Our copper tungsten equivalent to 5W3, 10W3, 10W53, A1WC, A10WC, A20WC, A30WC, 20W3, class10, Class11, Class12, CuW75, CuW70, CuW80, tungsten copper, CuW.

Copper Tungsten Electrode For EDM Description:

Our in this field more than ten years. we dedicate to produce the tungsten copper electrodes, tungsten silver electrodes for the EDM application.Our copper(silver) tungsten electrodes have the advantages of high density, high wear resistance and no porosity structure, good machinability and high efficiency EDM cutting speed.

We offer a wide range of WCu and AgW composite materials covering the most suitable solution for your individual application.

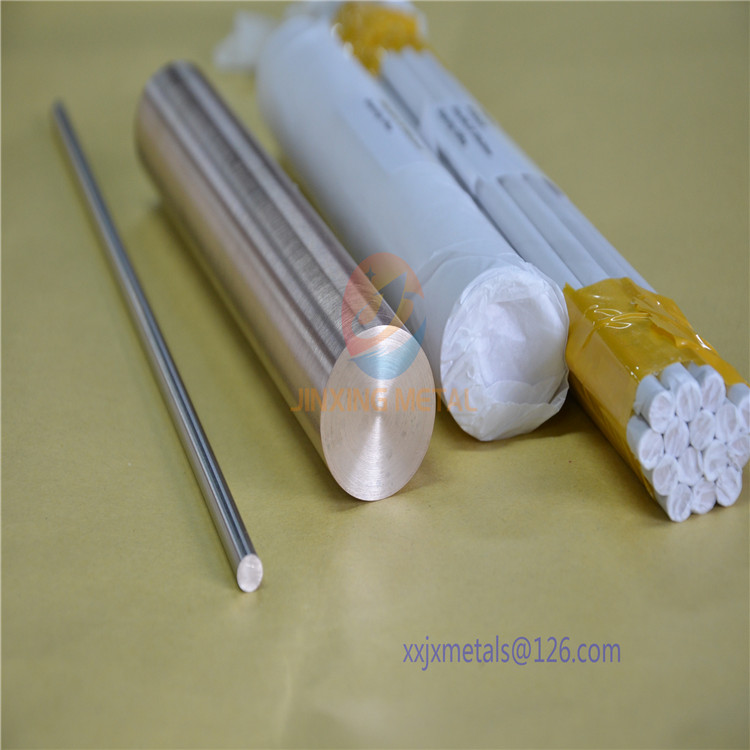

Tungsten copper alloy bar W75-Cu25 as welding electrodes

Specifications: Copper tungsten electrode for EDM

1.Product name: Tungsten Copper Alloy Bar/Sheet

2.Material: Tungsten Copper (WCu)

Tungsten copper alloy W75-Cu25 tungsten copper alloy bar/tungsten rods as welding electrodes

1.Specifications:

Diameter: as required

Density: W90Cu10 17.2g/cm3, W80Cu20 15.5g/cm3, W85Cu15 16.4g/cm3, W70Cu30 14.5g/cm3

 2. Table 2: Copper tungsten electrode for EDM properties

Alloy composition and product form are produced according to customer demand.
W-Cu products can also be cast in brass, aluminium, etc.

 3. Applications

Sealed cap for transistors sealing welder, contactor materials for high voltage switches and electrodes for spark processing etc.

4. Copper tungsten electrode for EDM feature

1. Better heat resistant;

2. better ablate-resistant;

3. High intensity

4. High density;

5. Excellent thermal and electrical conductivity;

6. easy to be machined.

We employ powder metallurgy to manufacture high-voltage tungsten-copper contacts:
out of the mixture of W and Cu (high copper content) by the infiltration of a tungsten matrix with copper (low copper content)

The starting powders have a high purity (W ≥ 99.9%), fine electrolytic Cu powderes. Because of its properties (Table 2) W-Cu is used for:

electrical contact materials

welding and erosion electrodes
