Product Description
tungsten copper properties:
Warning: count(): Parameter must be an array or an object that implements Countable in /www/wwwroot/www.matmetals.com/wp-includes/media.php on line 1206

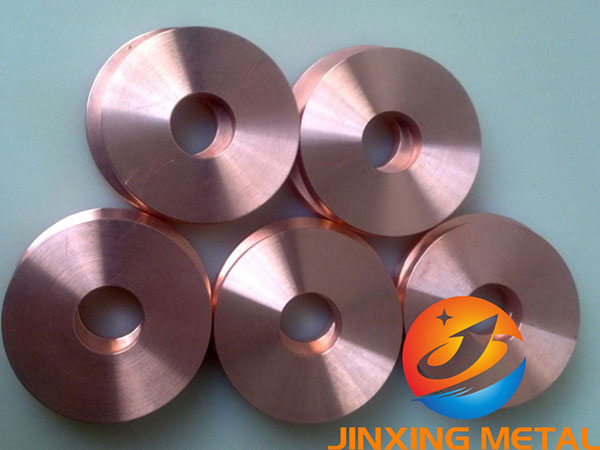

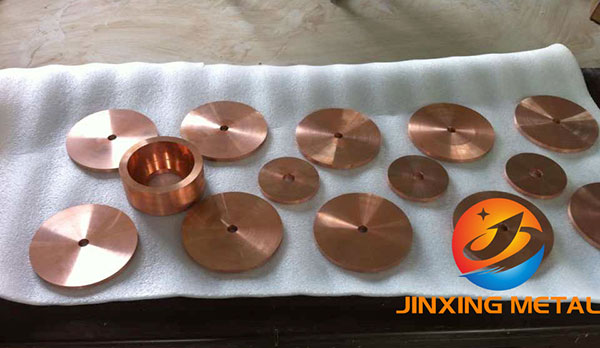

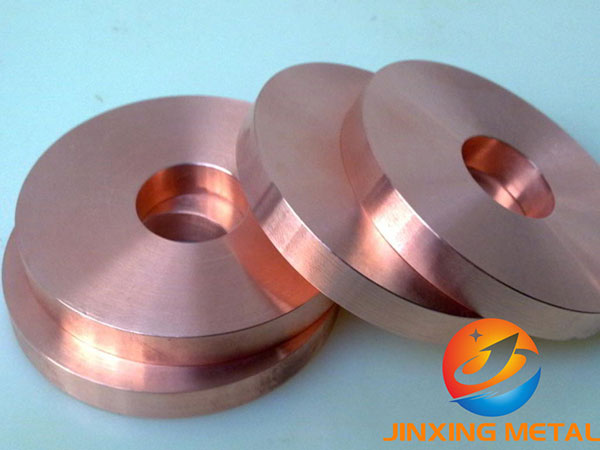

Copper Tungsten PCD welding
Quick Overview
In Stock
JINXING Metal has more than 10 years experience to produce the copper tungsten alloy. we use the advanced vacuum infiltration process and all of the product fulfill the standard of GB/T8320-2003 and ASTM B702. Our copper tungsten equivalent to 5W3, 10W3, 10W53, A1WC, A10WC, A20WC, A30WC, 20W3, class10, Class11, Class12, CuW75, CuW70, CuW80, tungsten copper, CuW.
|
content |
Density (g/cm³) |
Hardness (HRB) |
Conductivity (%IACS) |
Class |
|
W50Cu50 |
11.90 |
65 |
54 |
|
|
W55Cu45 |
12.50 |
70 |
49 |
10 |
|
W70Cu30 |
14.10 |
82 |
42 |
|
|
W75Cu25 |
14.50 |
90 |
38 |
11 |
|
W80Cu20 |
15.20 |
98 |
34 |
12 |
|
W85Cu15 |
15.9 |
240HB |
30 |
|
|
W90Cu10 |
16.75 |
260HB |
27 |
|
tungsten copper process follow chart: powder mix – press – sintering -vacuum infiltration -machining. All the process step is strictly controled by quality assurance. So our products have good performance and stable quality.
tungsten copper rotary electrodes material properties:
|
Content(%wt.) |
Density (g/cm³ ) |
Conductivity (% IACS) |
Hardness (HRB) |
Class # |
RWMA |
|
W70Cu30 |
13.9 |
42 |
88 |
|
|
|
W75Cu25 |
14.5 |
38 |
94 |
11 |
11.74400 |
|
W80Cu20 |
15.2 |
34 |
98 |
12 |
12.74350 |
