High Density Tungsten Nickel Copper Alloy Tungsten Heavy Alloy WNiCu
Tungsten Nickel Copper Alloy(W-Ni-Cu alloy) is an important tungsten-based heavy alloy. In general, nickel accounts for 6% of the alloy, and copper accounts for 4% of the alloy. It is generally produced by powder metallurgy. It is an alloy in which nickel and copper are added to tungsten, and other metal elements are added on this basis.
Application of Tungsten Nickel Copper Alloy
Radiation protection and guidance: Tungsten-nickel-copper alloy has become a radiotherapy collimator and protective element due to its high density (~18.8 g/cm3), excellent X-ray and gamma ray absorption, excellent processing performance, and non-magnetic properties. The ideal material.
| Composition | 90%W | 93%W | 95%W |
97%W |
||||||
| State | Sinter | Vacuum | Forge | Sinter | Vacuum | Forge | Sinter | Vacuum | Sinter | Vacuum |
| Density(g/cc) | 16.85-17.25 | 17.15-17.85 | 17.75-18.35 | 18.25-18.85 | ||||||
| Hardness(HRC) | 32Max | 30Max | 40Min | 33Max | 31Max | 40Min | 34Max | 32Max | 35Max | 33Max |
| Tensile Strength (Max) | 770Min | 900Min | 1400Max | 770Min | 910Min | 1440Max | 735Min | 920Min | 700Min | 850Min |
| Yield Strength(Mpa) | 620Min | 620Min | 1280Max | 650Min | 650Min | 1340Max | 650Min | 650Min | – | – |
| Elongation(%) | 5Min | 15Min | 5Min | 5Min | 12Min | 3Min | 3Min | 12Min | 2Min | 6Min |

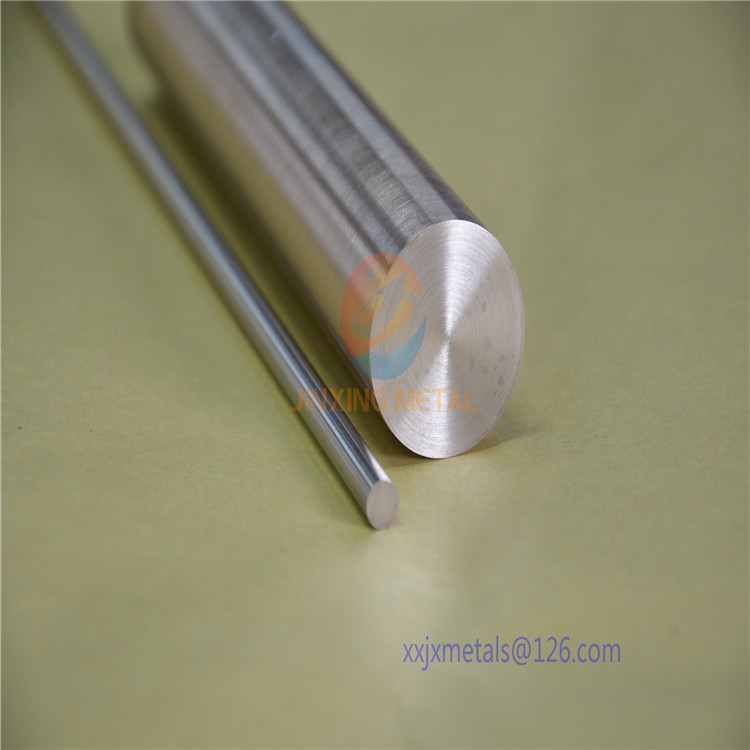

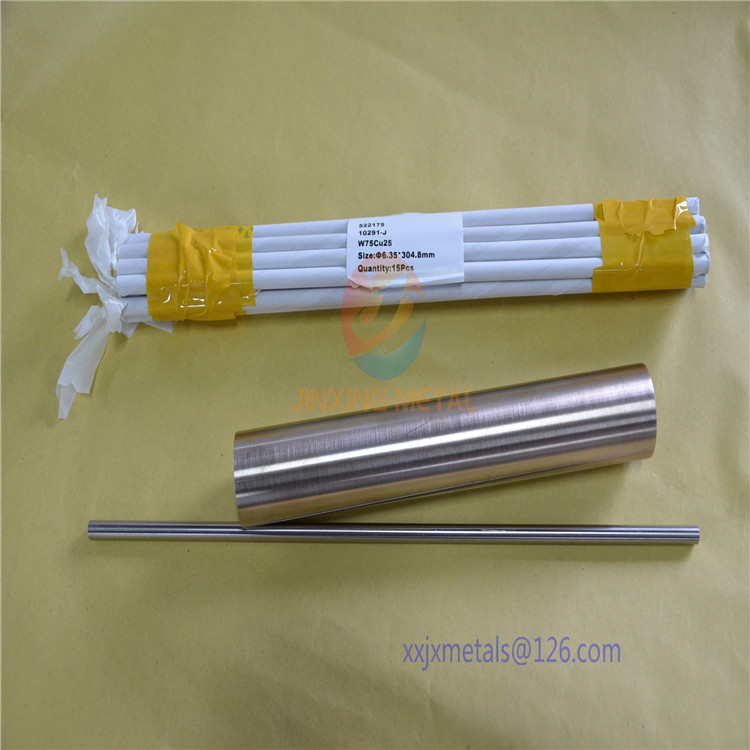

Tungsten Nickel Copper Alloy Picture:
