Product Description

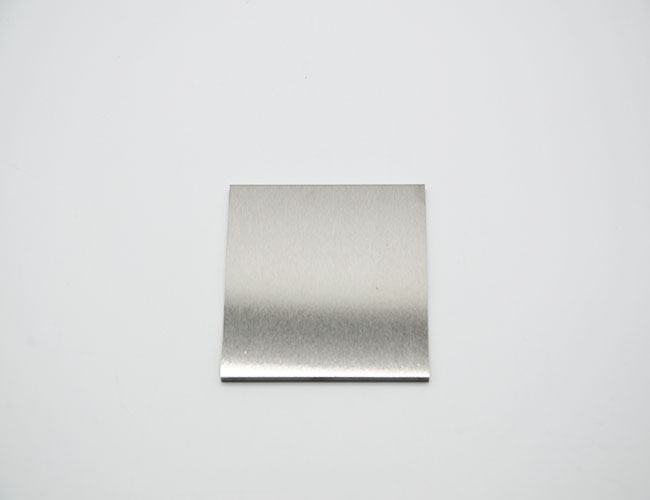

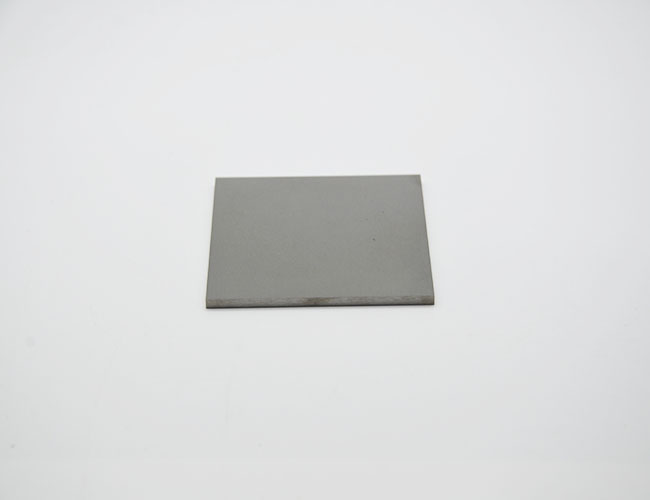

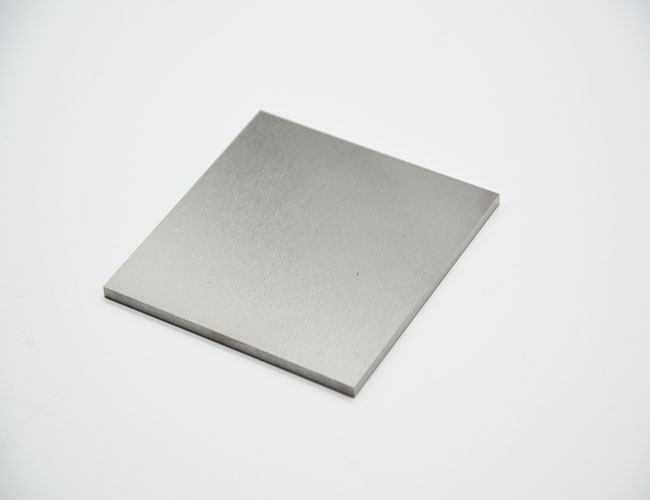

High Purity 99.95% Molybdenum Square Plate Sheet

High Purity 99.95% Molybdenum Square Plate Sheet is made of commercial pure molybdenum, and mainly undergoes extrusion, forging, bending, rolling, wire drawing and vacuum annealing. Molybdenum Square Plate Sheet has a series of excellent properties of molybdenum, such as high melting point, high strength, long service life, wear resistance, high temperature ablation resistance, high processing performance, high density, good thermal conductivity, smooth surface without cracks, good welding performance, strong radiation absorption ability, and good creep resistance. High Purity 99.95% Molybdenum Square Plate Sheet is widely used in the production of reflective screens and cover plates in sapphire crystal growth furnaces, reflective screens in vacuum furnaces, sputtering targets for plasma coating, high temperature boats, semiconductor components, high temperature structural parts, coatings for insulation screens, thermal insulation gaskets and heater shields and other products.

Specifications:

Grade	Mo1,Mo2
Purity	99.95%
Density	9.8-10.2g/cm³
Thickness	4mm-100mm
Width	10-1000mm
Length	≤1500mm
Surface	Black Oxide,Polished,Chemically Cleaned,Grinding,Bright
Deliver time	20 days
Standard	ANSI, ASTM B386, GB
Certification	ISO9001:2008
