high quality Tungsten Copper EDM and ECM Description: Tungsten copper alloy (WCu) are used worldwide for EDM (Electrical Discharge Machining) and ECM (Electrochemical Machining) electrodes. All material is manufactured by the press, sinter, and infiltrate process. Virgin powders are used, resulting in a consistent homogeneous material giving high and even burning rates. Copper tungsten is used in plunger/sinker applications where intricate definition is required, especially in tungsten carbide.
Tungsten copper for EDM and ECM applications are far superior when fine surface finishes, deep narrow slots or ribs and small precise holes are required. Tungsten alloys are preferred when matching extremely detailed sections. In the ECM process, Copper-Tungsten withstands erosive effects of short circuit malfunctions far better than other materials.
Tungsten Copper Recommended Usage: Copper tungsten is a sintered and infiltrated electrode material which combines the strength, high density, and high melting point of tungsten with the excellent electrical properties and good resistance against DC arcing of copper to form an unbeatable combination.
High quality Tungsten Copper EDM and ECMTypical Average Properties
1) Density: 14.0 gms/cc
2) Rockwell Hardness: 90 B
3) Electrical Conductivity: 48% I.A.C.S.
4) Copper Content: 25-30%
5) Tungsten Content: 70-75%
High quality Tungsten Copper EDM and ECM Material Grade
|
Grade |
Description |
% |
RWMA Class |
Density |
Elect Cond % IACS |
Hardness |
|
S15WC |
Tungsten Copper |
70 30 |
EDM ECM |
14.25 |
44-52 |
90-96 RB |
|
S10WC |
Tungsten Copper |
75 25 |
11 |
14.80 |
42-50 |
96-99 RB |
|
S30WC |
Tungsten Copper |
80 20 |
12 |
15.60 |
41-49 |
99-104 RB |
|
S20WS |
Tungsten Silver |
78 22 |
EDM ECM |
15.56 |
48-53 |
90-100 RB |

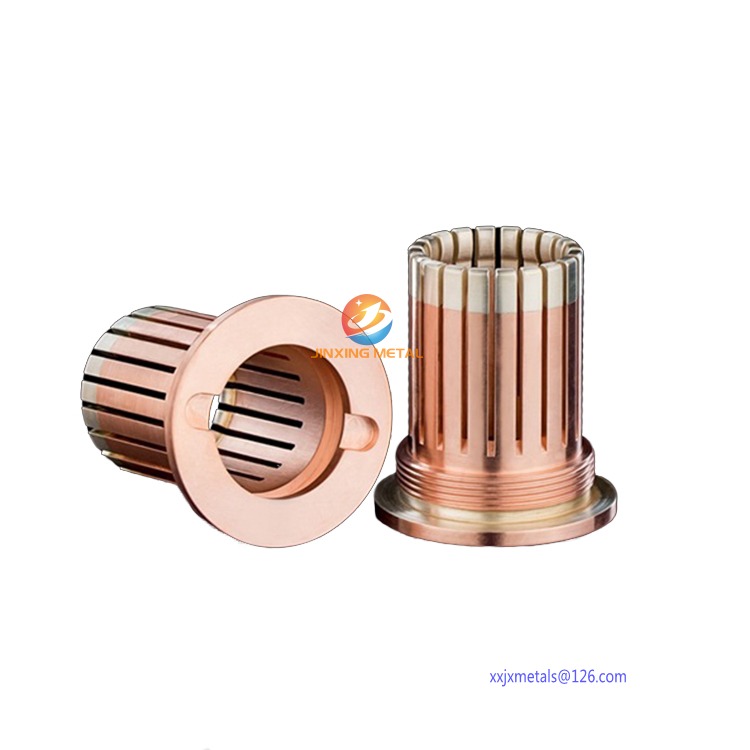

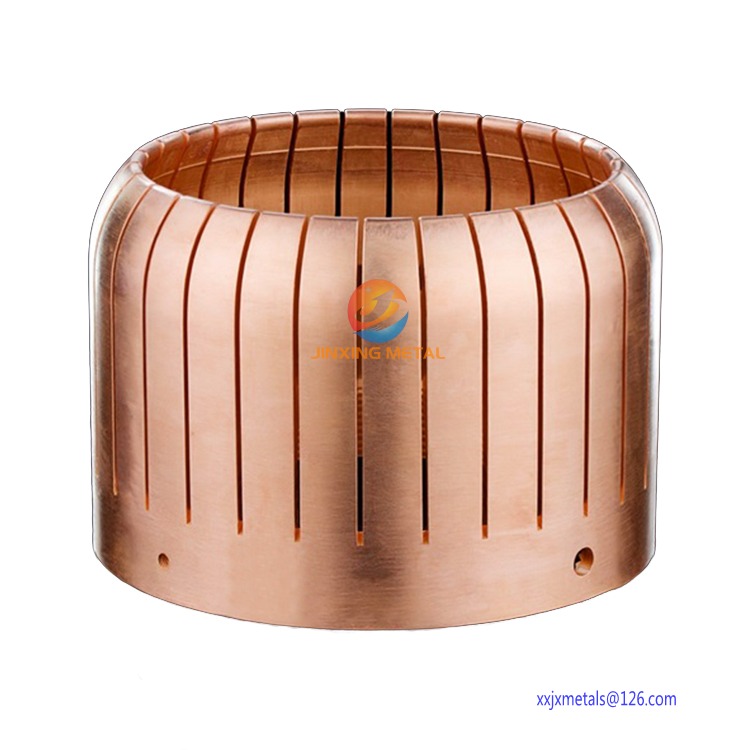

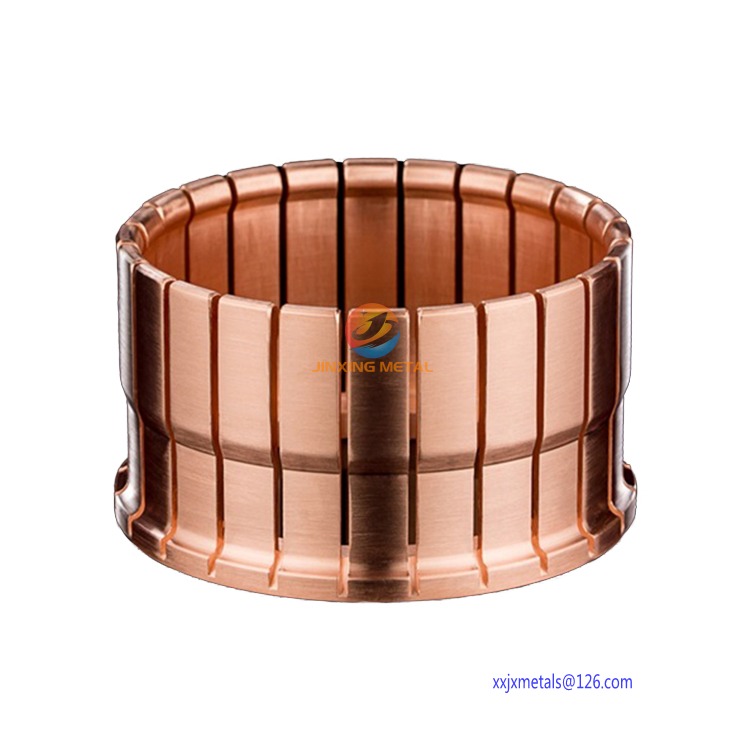

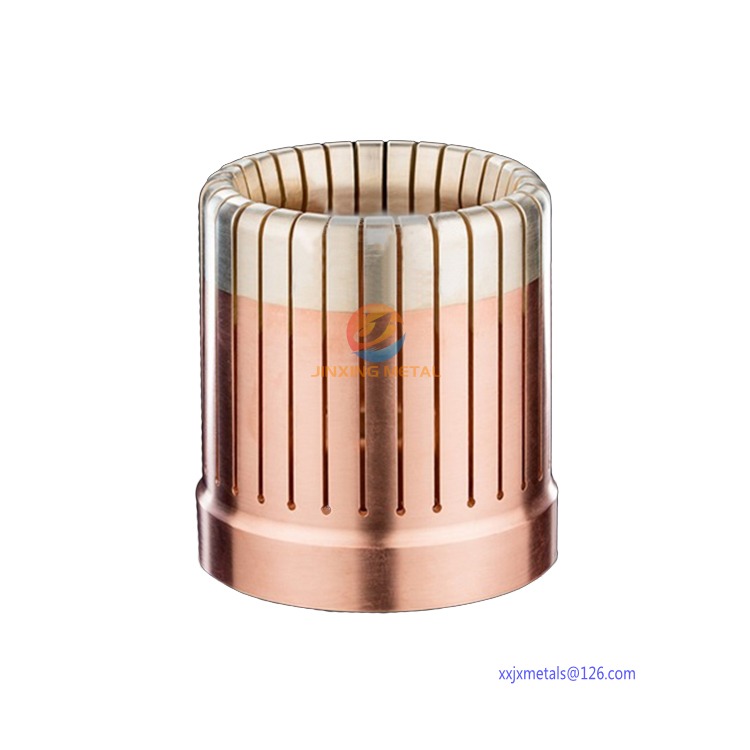

High quality Tungsten Copper EDM and ECM Picture
We offer a full compliment of metallic electrode materials and sizes. It may carry a full range of brass, copper, tungsten, tungsten carbide, copper tungsten and tellurium copper.
Precision Copper Tubing
Precision Brass Tubing
Precision Copper Rods
Precision Brass Rods
Multi-Channel Tubing
Copper Centerless Drills
Silver Tungsten ST-20
