Radiation Fume Hoods

Product Description


Warning: count(): Parameter must be an array or an object that implements Countable in /www/wwwroot/www.matmetals.com/wp-includes/media.php on line 1206

Warning: count(): Parameter must be an array or an object that implements Countable in /www/wwwroot/www.matmetals.com/wp-includes/media.php on line 1206

Single Ventilation Fume Hood Parameter

Ventilation Fume hood always used in the Nuclear Medical Department when experiment dispensing the drugs and isotopes ( For example I-131 and Te-99) , so it’s also called radioactive medicine dispensing cabinet.

Since radioactive medicine dispensing, so all sides of the ventilation cabinet should be lead protective treatment. Normally the Pb equivalent :

1. All sides 50mm-40mm Pb ;

2. Front and bottom 40mm Pb, Left and right side 30mmPb, Top and Back 20mm Pb ;

3. Customized .

The Ventilation Cabinet always surrounded and installed with dovetail lead tiles, excellent protective effect.

Lead Tiles

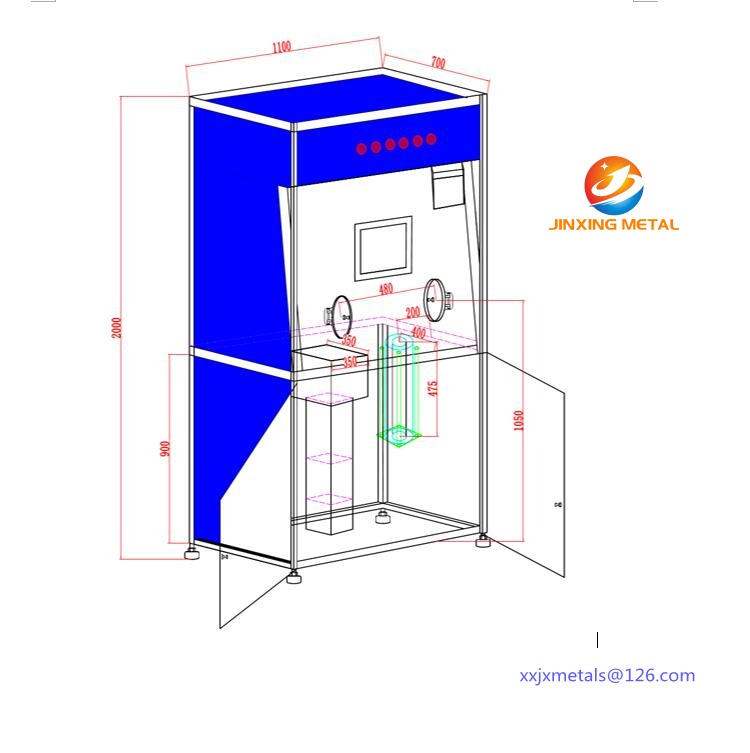

Ventilation Cabinet outside dimension : 1150mm Length*800mm Width*2200mm H

F18 (50-40mm Pb) Weight: 1500KG ; I-131(40-30-20mmPb) Weight:1200kg. The weight always depending on the Pb equivalent.

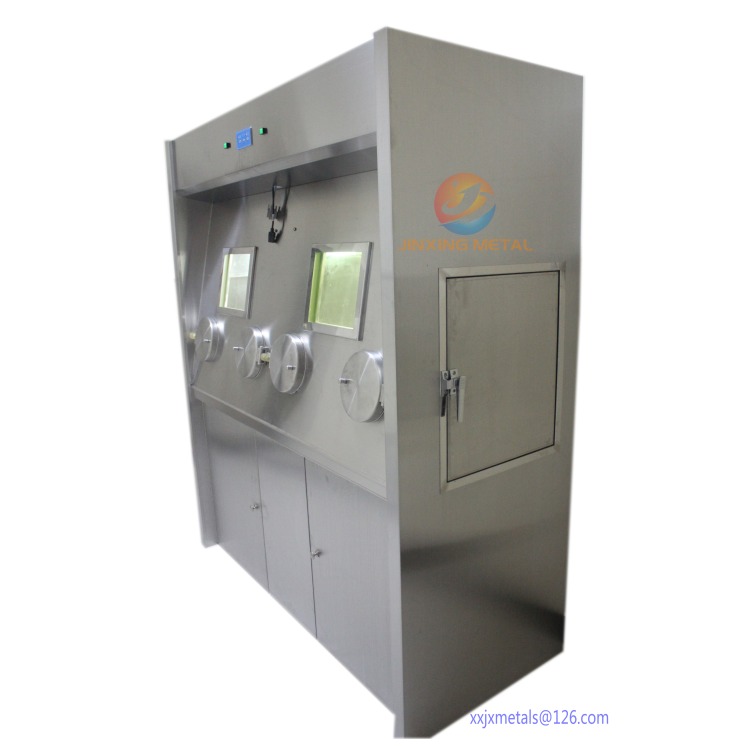

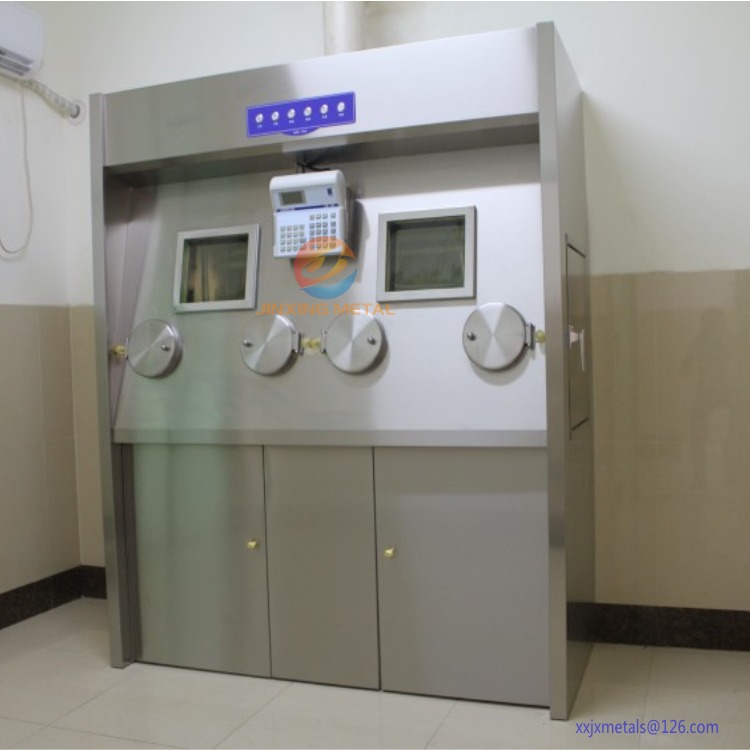

Radiation Fume Hoods of show

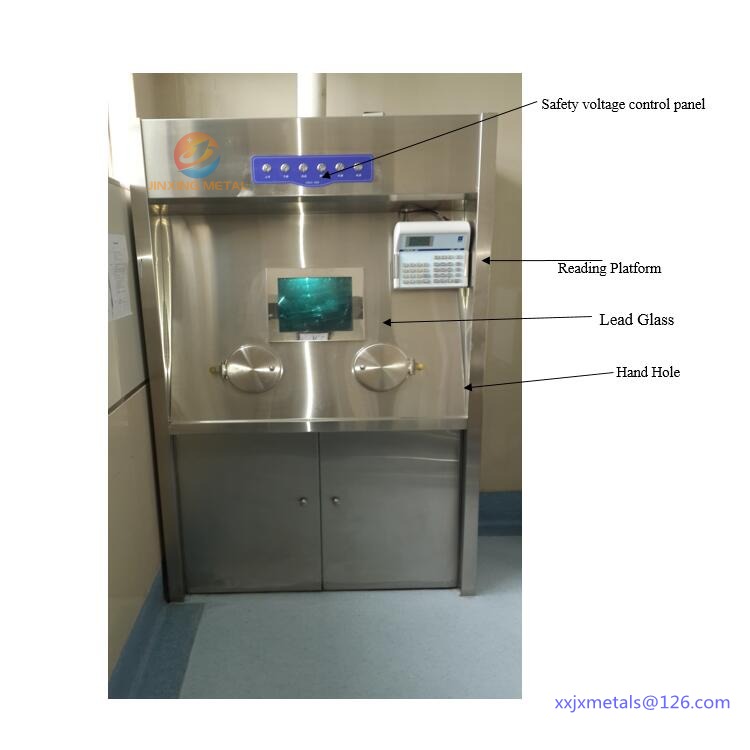

Radiation Fume Hoods of Structure

1. Ventilation cabinet internal & external choose the material SS304 Stainless Steel Plate, some of the part choose mirror surface plates.

2. Ventilation cabinet inside load-bearing steel frame choose the standard square steel welding with anti-rust paint, some of the parts with thicker steel plate.

3. In front of the ventilation cabinet provide Lead glass inspection window, lead equivalent to the cabinet Pb. (300mm L*300mm W)

4. The front designed operating hole (φ150mm), the protective cap of the operating hole lead equivalent to the cabinet too. The protective cap installed the handle and the magnetic pull open device according to ergonomic, easy to operating.

5. Both sides of the cabinet is provided with delivery goods window (530mm × height width 420mm). Also provide shielding door with a door lock which lead equivalent to the cabinet, to confirm there will be no radioactive ray leak accident.

6. Inside of the ventilation cabinet installed 40mmpb activity protective wells, reading platform suspended outside of cabinet , in order to easy observation

Lead Protected Activity Well

1. Inside of the ventilation cabinet also equipped with electric lift generator protection wells. (50mm Pb)

2. Ventilation cabinet with the accessories Lighting device、Sterilization lamp、ventilation device、Electric power 50HZ/20A/220V with security , external of the power centralized security voltage to regulator and control panel;.
