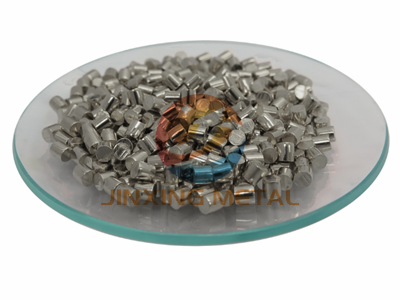

Titanium evaporation material

Titanium evaporation material

Quick Overview

In Stock

A crucible is a container that can withstand very high temperatures and is used for metal, glass, and pigment production as well as a number of modern laboratory processes. While crucibles historically were usually made from clay, they can be made from any material that withstands temperatures high enough to melt or otherwise alter its contents

Compare

Product Description

Evaporation (Vapor) Source Material

Boat, Wire, Crucibles, Inserts

Crucibles    Boats  Covers   Wires  Inserts

TYR supplying especial specifications crucibles, can be made per requested data and drawing.

 Material Name

Formula

 Purity

 Available Shape

 Cobalt

 Co

 99.9%, 99.95%, 99.99%

Inserts

Chromium

 Cr

 99.5%, 99.9%, 99.95%

Inserts

Iron

Fe

99.5%, 99.99%

Crucibles, Boats, Wires, Inserts

Copper

 Cu

 99.99%, 99.999%

Crucibles, Boats, Wires, Inserts

Hafnium

 Hf

 99.5%, 99.9%

Inserts, wires

Molybdenum

 Mo

 99.95%

Crucibles, Boats, Wires, Inserts

Nickel

 Ni

 99.9%, 99.98%, 99.995%, 99.999%

Crucibles, Boats, Wires, Inserts

Niobium

 Nb

 99.95%

Crucibles, Boats, Wires, Inserts

Tantalum

 Ta

 99.95%, 99.99%

Crucibles, Boats, Wires, Inserts

Titanium

 Ti

 99.7%, 99.99%, 99.995%, 99.999%

Crucibles, Boats, Wires, Inserts

Tungsten

 W

 99.95%

Crucibles, Boats, Wires, Inserts

Vanadium

 V

 99.9%

Inserts

Sliver

Ag

99.99%

Crucibles

Platinum

Pt

99.99%

Crucibles

Palladium

Pd

99.95%

Crucibles

Iridium

Ir

99.95%

Crucibles

Graphite

C

99.9%

Crucibles

Zirconium Oxide

 ZrO2

 99.5%, 99.9%

Crucibles

Aluminum oxide

Al2O3

99.9%

Crucibles

Magnesium Oxide

MgO

99.9%

Crucibles

Silicon Oxide (quartz)

SiO2

99.99%

Crucibles

Boron Nitride

BN

99.5%

Crucibles

Boron Oxide

B2O3

99%

Crucibles

A crucible is a container that can withstand very high temperatures and is used for metal, glass, and pigment production as well as a number of modern laboratory processes. While crucibles historically were usually made from clay, they can be made from any material that withstands temperatures high enough to melt or otherwise alter its contents

Laboratory crucibles, A crucible is a cup-shaped piece of laboratory equipment used to contain chemical compounds when heated to extremely high temperatures. Crucibles are available in several sizes and typically come with a correspondingly-sized crucible cover (or lid).

When heated over a flame, the crucible is often held inside a pipeclay triangle which itself is held on top of a tripod

Materials and description, Crucibles and their covers are made of high temperature-resistant materials, usually porcelain, alumina or an inert metal. One of the earliest uses of platinum was to make crucibles. Ceramics such as alumina, zirconia, and especially magnesia will tolerate the highest temperatures. More recently, metals such as nickel and zirconium have been used. The lids are typically loose-fitting to allow gases to escape during heating of a sample inside. Crucibles and their lids can come in high form and low form shapes and in various sizes, but rather small 10–15 ml size porcelain crucibles are commonly used for gravimetric chemical analysis. These small size crucibles and their covers made of porcelain are quite cheap when sold in quantity to laboratories, and the crucibles are sometimes disposed of after use in precise quantitative chemical analysis. There is usually a large mark-up when they are sold individually in hobby shops.

Explain for purity of Rare Earth Metal:what is the purity of Rare Earth Metal?Whats mean is “TREM”? Whats means is the “RE/TREM”? TREM means Total content of Rare Earth Metal, RE/TREM means this RE element's content in the Total content of Rare Earth Metal; for example La/TREM: 99.9%, TREM: 99%, means La element content is 99.9% in the total content of Rare Earth Metal and Total content of Rare Earth Metal is 99%.

Total content of Rare Earth Metal are include those elements, Total 16 elements. They are La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu, Sc, Y

RE = rare earth

REM = rare-earth metals

About Evaporation material basic knowledge:

Evaporation is a type of vaporization of a liquid that occurs from the surface of a liquid into a gaseous phase that is not saturated with the evaporating substance. The other type of vaporization is boiling, which is characterized by bubbles of saturated vapor forming in the liquid phase. Steam produced in a boiler is another example of evaporation occurring in a saturated vapor phase. Evaporation that occurs directly from the solid phase below the melting point, as commonly observed with ice at or below freezing or moth crystals (napthalene or paradichlorobenzine), is called sublimation.

Application for Film deposition, Thin films may be deposited by evaporating a substance and condensing it onto a substrate, or by dissolving the substance in a solvent, spreading the resulting solution thinly over a substrate, and evaporating the solvent.

The rate of evaporation depends on the material and such factors as the temperature, the surface area, amount of ventilation, and the pressure exerted on the surface

Thermal vacuum deposition is one method for fabricating thin films under a high vacuum environment also addressed as "thermal evaporation method". With this method, an electron beam (e-beam) or resistive heating is usually used to evaporate the desired material inside the vacuum coating chamber, which then adheres to a substrate placed above it. This method can classified as a form of PVD, which stands for physical vapor deposition, and is suitable for fabricating high-quality thin films with thicknesses on the order of nanometers on glass, plastic, films, metals, and almost any other kind of material. An e-beam can be used to melt evaporation material with melting points even above 2000 degree, which are common for thin films on optical components, some of which consist of more than 300 layers.

Some of the characteristics of a good optical thin film are as follows: good transmittance, low absorption, stable refractive index, high packing density, low scattering, low stress, reasonable hardness, good adhesion, chemical stability, environmental resistance. Among the several parameters that influence thin film quality, the choice of evaporation material is critically important.

Wide application as a thin film material:

Our evaporation material can be used to manufacture the following:

optical thin film coatings such as AR coatings, HR coatings, and coatings for most optical filters

functional thin film coatings such as transparent conductive coatings

protective overcoatings

coatings for gas barrier applications

antiwear films

heat-resistant coatings

colored decorative coatings

optical thin film coatings

coatings for laser optics applications

transparent conductive films, antistatic films, solar coatings
