Product Description

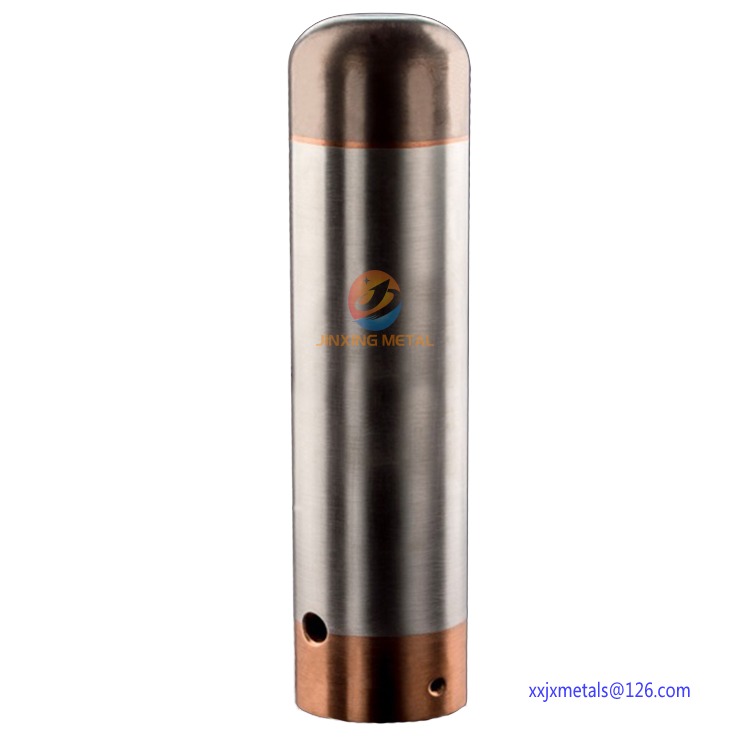

Tungsten Copper Electrode of description

Tungsten copper is a good use of high-purity tungsten metal powder and high purity characteristics of the plasticity of copper powder, the advantages of high conductivity, the static pressure molding, high temperature sintering, melting refined copper from the process of composite materials. Arc off a good performance, good thermal conductivity, thermal expansion of small, high-temperature non-softening, high-intensity, high-density, high hardness.

Tungsten Copper Electrode of Show

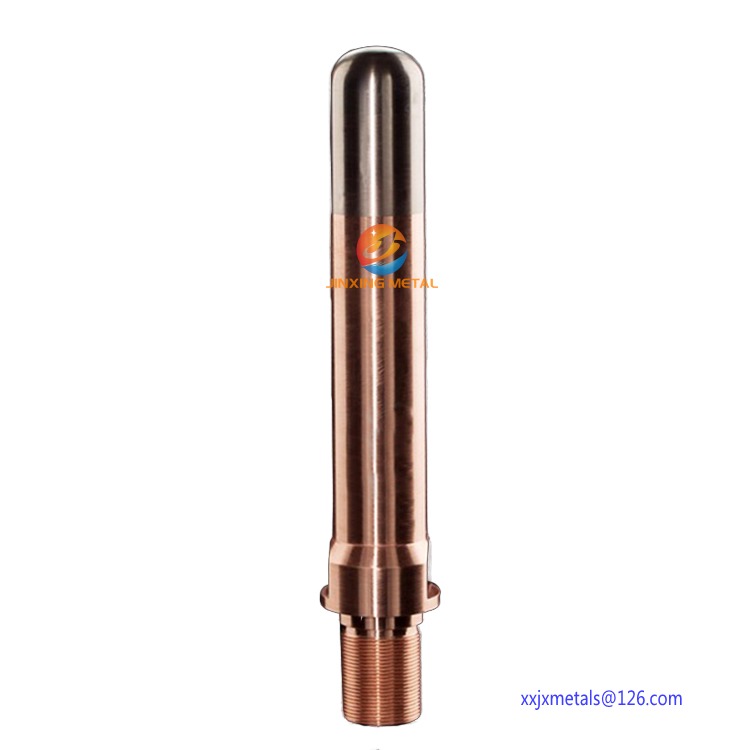

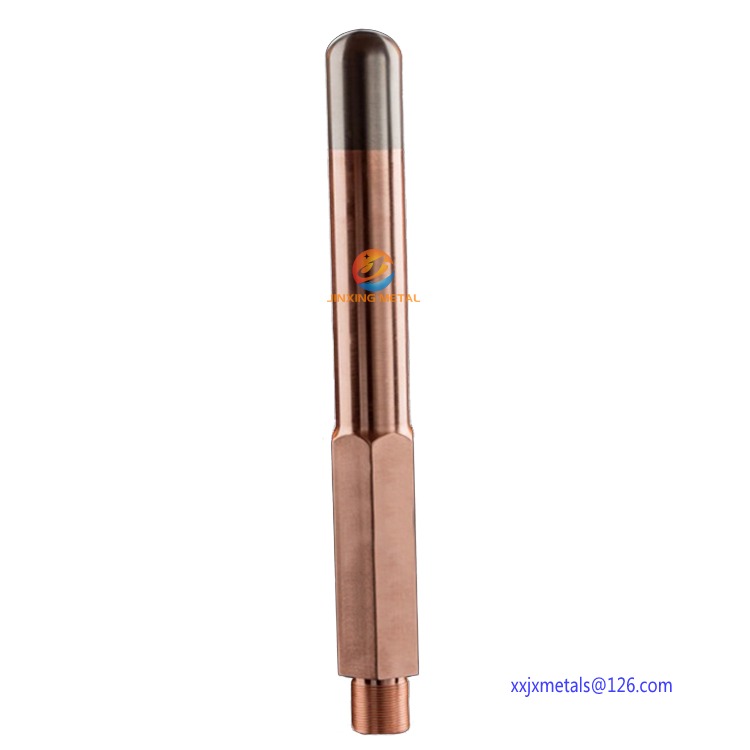

W-Cu Combination Electrode W-Cu Rotary Electrode PCD Disk Electrode

Resistance welding electrode

A combination of the advantages of tungsten and copper, high temperature resistance, electric arc ablation, high intensity, than the major, conductive, thermal conductivity, and ease of machining, and it has features such as cold sweating, as with tungsten high hardness, high melting point, anti-adhesion characteristics, often used to do a certain resistance to abrasion, resistant to high temperature welding, butt welding electrode.

EDM electrode

In view of tungsten steel, high temperature super-hard alloy die to be produced by corrosion, the common electrode wear big, slow, and the W-Cu electrical corrosion of high speed, low loss rate, precise electrode shape, excellent processing performance, to ensure the accuracy of processing pieces of greatly increased.

High-voltage electrode discharge tube

High-voltage vacuum discharge tube in the workplace, the contact material in a few seconds of time zero temperatures thousands of degrees Celsius, while the W-Cu anti-ablation properties, high toughness, good electrical conductivity, thermal conductivity performance to the discharge tube to provide the necessary stability conditions.

Electronic Packaging Materials

Both the low-expansion properties of tungsten, but also has high thermal conductivity properties of copper, its thermal expansion coefficient and thermal conductivity of conductive material can be adjusted to change the composition and thereby to the material provided to facilitate the use.

Tungsten Copper Electrode Of Feature

The material combines the properties of both metals, resulting in a material that is heat-resistant, ablation-resistant, highly thermally and electrically conductive, and easy to machine. Parts are made from the copper tungsten alloy by pressing the tungsten particles into a desired shape, sintering the compacted part, then infiltrating with molten copper. Sheets, rods and bars of the alloy are available as well. Commonly used copper tungsten alloy contains 10 to 50 wt. % of copper, the remaining portion being mostly tungsten. The typical properties of the alloy depend on its composition. The alloy with less wt. % of copper has higher density, higher hardness and higher resistivity. The typical density of CuW90 alloy, with 10% of copper, is 16.75g/cm3 and 11.85g/cm3 for CuW50 alloy. CuW90 has higher hardness and resistivity of 260 HB kgf/mm2 and 6.5 Ω.cm than CuW50.

  Both the low-expansion properties of tungsten, but also has high thermal conductivity properties of copper, its thermal expansion coefficient and thermal conductivity of conductive material can be adjusted to change the composition and thereby to the material provided to facilitate the use.
