Product Description

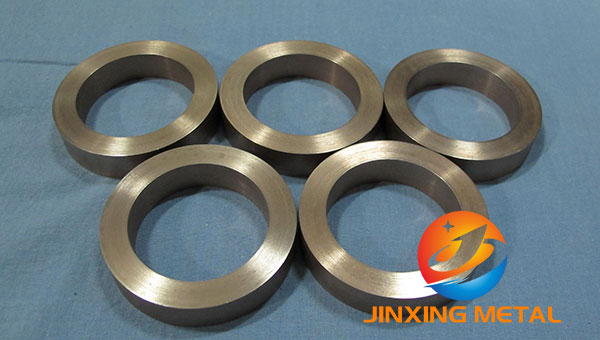

Tungsten Copper Grades Details
Tungsten Copper Grades
Quick Overview
In Stock
Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
|
RWMA CLASS |
RWMA NO. |
RWMA GENERAL USE |
RWMA DESCRIPTION |
|
10 copper tungsten |
C74450 |
Flash and butt welding electrodes where good electrical and thermal conductivity is necessary and where a degree of malleability is desired. |
A powder metallurgical combination of 45% copper and 55% of the refractory metal tungsten. Not a true alloy. This combination produces dense, hard metals of superior wear resistance and strength at elevated temperatures. In addition, they possess good thermal and electrical conductivity. |
|
11 copper tungsten |
C74400 |
Projection welding electrodes, flash and butt welding electrodes, light upsetting and seam welding bushings. Harder than Class 10 and used where moderate pressure is required. This material can also be used for spot welding low conductivity steels such as stainless. |
A powder metallurgical combination of 25% copper and 75% of the refractory metal tungsten. Not a true alloy. This combination produces dense, hard metals of superior wear resistance and strength at elevated temperatures. In addition, They possess good thermal and electrical conductivity. |
|
12 copper tungsten |
C74350 |
Heavy duty projection welding electrodes, electro-forming and electo-forging electrodes facings for upsetting of studs and rivets, cross wire welding of large diameter wire and rod. |
A powder metallurgical combination of 20% copper and 80% of the refractory metal tungsten. Not a true alloy. This combination produces dense, hard metals of superior wear resistance and strength at elevated temperatures. In addition, they possess good thermal and electrical conductivity. |
Chemical Composition Group B Refractory Metals
|
RWMA CLASS |
CDA |
DESCRIPTION |
CU (incl. Ag) |
Fe |
W |
Cd |
Ni |
Co |
Cr |
Si |
Be |
Pb |
Zr |
Al |
|
10 |
C74450 |
copper tungsten |
43 – 47 |
— |
rem. |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
11 |
C74400 |
copper tungsten (ASTM B702 C1 D) |
23 – 27 |
— |
rem. |
– – |
— |
— |
— |
— |
— |
— |
— |
— |
|
12 |
C74350 |
copper tungsten (ASTM B702 C1 E) |
18 – 22 |
— |
rem. |
— |
— |
— |
— |
— |
— |
— |
— |
— |
Minimum Physical Properties for Tungsten Copper Group B
|
GROUP B REFRACTORY METALS |
HARDNESS ROCKWELL(HRB) |
CONDUCTIVITY % I.A.C.S. |
ULTIMATE COMPRESSIVE StrENGTH ksi |
|
|
CLASS 10 |
rod, bar,inserts |
72 HRB |
45% |
135 |
|
CLASS 11 |
rod, bar,inserts |
94 HRB |
40% |
160 |
|
CLASS 12 |
rod, bar,inserts |
98 HRB |
35% |
170 |
