Zirconium Tubing
Zirconium Tubing Zirconium seamless tube (Zr tubes, Zr tubing) & Zirconium pipe (Zr tubes, Zr tubing) with 8-133mm OD and material grades: R60702, R60705.
Zirconium Tubing is very often specified for highly-corrosive industrial applications and frequently used in processes in which chlorides are a component. These and other very corrosive chemicals are damaging to lesser materials. This corrosion can rapidly lead to repair and/or replacement of the equipment in short time frame, causing expensive and highly disruptive process stoppage.
The main features of Zirconium Tubing are:
•High heat transfer efficiency
• Very low thermal expansion rate
•Strong resistance to tensile erosion
• Strong resistance to local corrosion (pitting and cracks)
•Good corrosion resistance in most organic acids
• Excellent corrosion resistance in inorganic acids
•Good corrosion resistance in strong alkaline media
• Low thermal neutron absorption
Chemical composition for Zirconium tubing
|
Grade |
Zr+Hf |
Hf |
Fe+Cr |
Sn |
H |
N |
C |
O |
Nb |
|
R60702 |
99.2% |
<4.5% |
<0.20% |
– |
<0.005% |
<0.015% |
<0.030% |
<0.15% |
– |
|
R60704 |
97.5% |
<4.5% |
0.2-0.4% |
1.0-2.0% |
<0.005% |
<0.015% |
<0.030% |
<0.16% |
– |
|
R60705 |
95.5% |
<4.5% |
<0.2% |
– |
<0.005% |
<0.015% |
<0.050% |
<0.16% |
2.0-3.0% |

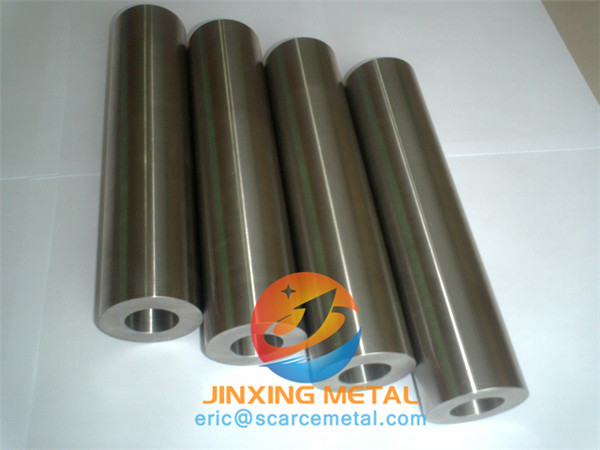

Zirconium Tubing Picture:
